Your RV absorption refrigerator needs proper leveling to work correctly, and many RVers discover this the hard way when their food spoils during what should have been a perfect camping trip. This guide is for RV owners who want to keep their absorption fridge running efficiently and avoid costly repairs or food loss.
An unlevel RV can cause serious problems for your absorption refrigerator, from poor cooling performance to complete system failure. We’ll walk you through the science behind why RV refrigerator leveling matters so much for these unique cooling systems, and show you the warning signs that indicate your rig needs better positioning.
You’ll also learn proven RV leveling techniques that protect your investment and keep your food fresh, plus discover the long-term consequences of ignoring these refrigerator leveling requirements. By the end, you’ll know exactly how to level your RV for refrigerator efficiency and maintain peak performance wherever you park.
Understanding How RV Absorption Refrigerators Work
Gravity-dependent cooling process mechanics
RV absorption refrigerators work completely differently from the electric fridges you have at home. Instead of using a compressor and electric motor, these clever devices rely on gravity and heat to create cooling. Think of it like a silent, continuous waterfall of cooling liquid flowing through tubes inside your RV.
The entire system depends on liquid ammonia and water solutions flowing downward through a series of tubes and chambers. When your RV sits perfectly level, this liquid flows smoothly from one component to the next, creating the cooling effect you need for fresh food and cold drinks. The magic happens because heavier liquids naturally want to flow down, and lighter gases want to rise up – but only when everything stays properly aligned.
When your RV refrigerator leveling gets thrown off, even by just a few degrees, this gravity-dependent flow gets disrupted. The cooling liquids might pool in the wrong areas or flow too slowly, which means your fridge stops working efficiently or stops working altogether.

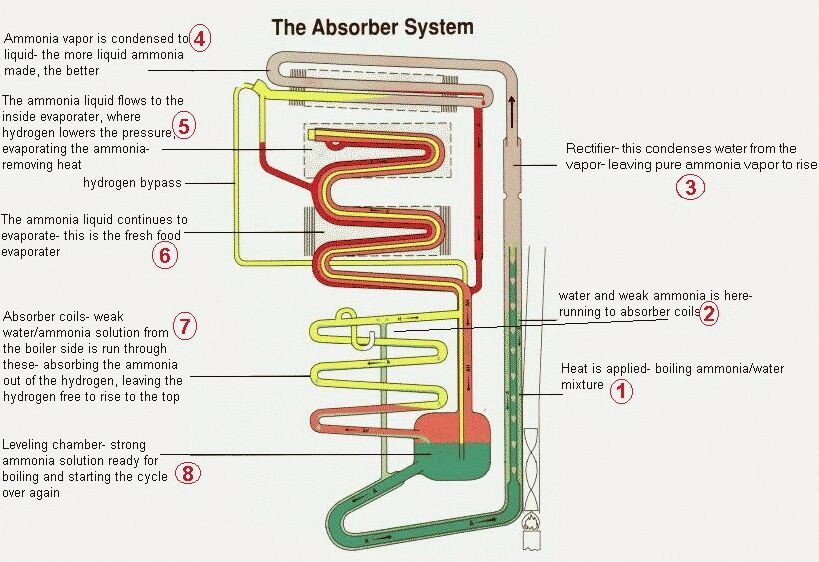

Heat-powered refrigeration cycle basics
Your absorption fridge creates cold temperatures using heat as its power source – sounds backward, but it’s actually brilliant engineering. The process starts with a heat source (propane flame, electric element, or engine heat) warming up a solution of ammonia and water in what’s called the generator.
This heating separates the ammonia from the water, creating ammonia gas that rises up through the system. The ammonia gas then moves to a condenser where it cools down and turns back into liquid. This liquid ammonia flows into an evaporator where it combines with hydrogen gas, causing rapid evaporation that creates the cooling effect inside your food compartment.
The cycle completes when the ammonia vapor moves to an absorber where it dissolves back into water, and the solution returns to the generator to start the whole process again. This continuous cycle keeps running as long as heat gets applied and the system stays level.
Critical role of ammonia flow in cooling
Ammonia serves as the primary cooling agent in your absorption refrigerator leveling system, and its flow patterns make or break your fridge’s performance. This refrigerant needs to move through the system in precise amounts at specific times to maintain proper cooling temperatures.
The ammonia solution must flow smoothly from the generator through the rectifier, condenser, evaporator, and absorber in a continuous loop. Each component requires the right amount of ammonia at the right concentration to do its job. When ammonia flow gets restricted or redirected due to poor leveling, some parts of the cycle get starved while others get flooded.
Poor ammonia circulation leads to several problems:
- Weak cooling in the refrigerator compartment
- Inconsistent temperatures throughout the unit
- Complete cooling failure in severe cases
- Potential damage to internal components over time
The system depends on precise fluid dynamics that only work properly when your RV maintains proper leveling for optimal absorption refrigerator efficiency leveling.
Why level positioning affects performance
Your RV absorption fridge maintenance success hinges on understanding why level positioning matters so much. These refrigerators don’t have pumps or fans to force liquids and gases through the system – everything moves based on natural physics principles that require specific positioning.
When your RV sits unlevel, several critical problems occur simultaneously. The ammonia solution might not drain completely from the evaporator, leaving less surface area for heat exchange. Liquid ammonia could accumulate in gas lines where only vapor should exist. The hydrogen gas circulation gets disrupted, reducing the evaporation rate that creates cooling.
Even a 3-degree tilt can cause unlevel RV refrigerator problems that impact performance. The more severe the unlevel condition, the faster your cooling efficiency drops. Some RVers notice temperature changes within hours of parking on uneven ground, while severe tilting can shut down cooling completely.
Your refrigerator’s internal tubes and chambers are precisely engineered for level operation. When tilted, gravity works against the intended flow patterns, creating air pockets, liquid blockages, and improper gas circulation that prevent the heat-powered cooling cycle from working effectively.
The Science Behind Leveling Requirements
How Gravity Affects Refrigerant Circulation
Absorption refrigerators rely on a continuous flow of ammonia and water solution that moves through a sealed system without any pumps or compressors. Gravity plays the starring role in keeping this circulation moving smoothly. The refrigerant mixture needs to flow downward from the generator through the condenser, then into the evaporator where cooling happens.
When your RV sits unlevel, even by just a few degrees, gravity can’t do its job properly. The refrigerant may pool in the wrong areas or flow too slowly through certain sections. Picture trying to pour syrup from a tilted bottle – it either gushes out too fast or barely drips. The same principle affects your RV refrigerator leveling needs.
The absorption cooling process depends on precise liquid and vapor separation at different heights within the system. If your motorhome tilts beyond the manufacturer’s recommended tolerance (typically 3-6 degrees), the refrigerant circulation becomes sluggish or completely disrupted. This explains why absorption refrigerator leveling requirements are so critical for proper operation.
Optimal Bubble Flow Patterns for Cooling
Inside your absorption refrigerator, tiny bubbles of hydrogen gas create a lifting action that helps move the refrigerant through the evaporator coils. These bubbles need to rise vertically in a steady, controlled pattern to maintain consistent cooling temperatures.
When your RV stays level, the bubble flow creates an efficient pumping action. The bubbles form at the bottom of the evaporator tubes and rise upward, carrying the liquid ammonia with them. This creates a natural circulation that removes heat from your food compartment.
Unlevel RV refrigerator problems start when the bubble pattern gets disrupted. Tilted positioning causes bubbles to collect on one side of the tubes or move erratically through the system. Instead of a smooth, vertical flow, you get chaotic bubble movement that reduces cooling efficiency.
The hydrogen bubbles also help separate the different components in the refrigerant mixture. Level positioning ensures this separation happens at the right locations within the cooling unit, maintaining the chemical balance needed for heat absorption.
Impact of Tilted Positioning on Heat Exchange
Heat exchange efficiency drops dramatically when your absorption refrigerator operates at an angle. The condenser coils on the back of your unit need proper refrigerant flow to release heat effectively. Tilted positioning disrupts this flow, causing hot spots and uneven cooling.
RV absorption fridge maintenance becomes more challenging when heat exchange suffers from poor leveling. The cooling unit works harder to achieve the same temperatures, leading to increased propane consumption and potential component failure.
The evaporator section inside your refrigerator also depends on level positioning for optimal heat transfer. When tilted, liquid refrigerant may not cover all the cooling surfaces evenly, creating warm spots in your food compartment. You might notice some areas staying cool while others remain at room temperature.
Poor heat exchange from unlevel operation can cause the cooling unit to cycle on and off more frequently. This constant cycling puts extra stress on the system and reduces the overall lifespan of your absorption refrigerator efficiency leveling components.
Signs Your RV Refrigerator Needs Better Leveling
Inconsistent Cooling Temperatures
Temperature fluctuations inside your RV refrigerator often signal that your absorption refrigerator leveling needs attention. When your RV sits at an angle, the ammonia solution can’t circulate properly through the cooling coils, creating hot and cold spots throughout the compartments. You might notice the top shelf staying warmer than usual while the bottom remains too cold, or drinks that should be chilled staying at room temperature despite the unit running continuously.
These temperature inconsistencies become more pronounced when your RV is parked on uneven ground for extended periods. The cooling system relies on gravity-fed circulation, and even a slight tilt can disrupt this delicate process. Professional RV technicians recommend checking internal temperatures with a thermometer rather than relying solely on the unit’s built-in controls, as unlevel conditions can cause the thermostat to give false readings.
Food Spoilage Despite Power Connection
Nothing’s more frustrating than opening your RV refrigerator to find spoiled food when you know the power’s been on the whole time. This classic sign of RV refrigerator leveling problems occurs because the absorption cooling process becomes inefficient when the unit operates at incorrect angles. The ammonia and hydrogen gases can’t flow properly through the sealed system, reducing the refrigerator’s ability to maintain safe food storage temperatures.
Even with adequate power supply and properly functioning electrical components, an unlevel absorption refrigerator simply can’t do its job. Dairy products, leftovers, and perishables spoil faster because the cooling cycle becomes disrupted. This issue costs RV owners hundreds of dollars in wasted groceries and creates potential health risks from consuming food stored at unsafe temperatures.
Unusual Gurgling or Bubbling Sounds
Your RV absorption fridge should run quietly, so strange gurgling, bubbling, or percolating sounds often indicate leveling issues. These noises occur when the ammonia solution struggles to flow correctly through the cooling tubes and coils. When your RV sits unlevel, air pockets form in the sealed cooling system, creating the distinctive bubbling sounds that many RVers mistake for normal operation.
The gurgling becomes more noticeable during startup cycles or when the refrigerator switches between cooling modes. Some RV owners describe these sounds as similar to a coffee percolator or aquarium pump. While absorption refrigerators do make some operational noise, excessive bubbling typically means the unit is working harder than necessary to maintain temperatures due to improper RV leveling techniques being applied at your campsite.
Ice Formation in Wrong Compartments
Ice buildup in unexpected areas of your RV refrigerator points to circulation problems caused by unlevel positioning. You might find frost accumulating on the back wall of the main compartment instead of staying contained in the freezer section. This happens because the cooling coils can’t distribute cold air evenly when the absorption system operates at incorrect angles.
Conversely, you might notice that your freezer compartment isn’t maintaining proper ice formation while other areas become too cold. This uneven cooling pattern stresses the entire system and indicates that your motorhome refrigerator leveling requirements aren’t being met. The refrigerator compensates by running longer cycles, increasing propane consumption or electrical usage while still failing to maintain proper temperatures in all compartments.
Consequences of Operating an Unlevel Absorption Refrigerator
Permanent Damage to Cooling Unit
Operating an unlevel RV refrigerator creates serious risks for the absorption cooling system’s internal components. The ammonia solution inside the refrigerator relies on precise circulation patterns that get disrupted when your RV isn’t properly leveled. When the unit operates at an angle beyond manufacturer specifications (typically 3-5 degrees off level), the ammonia can’t flow correctly through the cooling coils and generator tube.
This improper flow causes the ammonia solution to pool in areas where it shouldn’t, leading to crystallization and blockages. Once these blockages form, they’re often irreversible, effectively destroying the cooling unit’s ability to function. The delicate balance of chemicals inside the sealed system becomes compromised, and no amount of releveling will restore proper operation once permanent damage occurs.
Expensive Repair and Replacement Costs
RV absorption refrigerator repairs carry hefty price tags that can shock unsuspecting RV owners. A damaged cooling unit typically costs between $1,500 to $3,000 to replace, not including labor charges. Many RV service centers charge $150-200 per hour for refrigerator work, and the job often takes 6-8 hours to complete properly.
| Repair Type | Cost Range | Labor Hours |
| Cooling Unit Replacement | $1,500-$3,000 | 6-8 hours |
| Burner Assembly Repair | $300-$800 | 2-4 hours |
| Control Board Replacement | $250-$500 | 1-2 hours |
| Complete Refrigerator Replacement | $2,500-$8,000 | 8-12 hours |
The worst part? Insurance rarely covers damage caused by improper leveling since it’s considered preventable maintenance neglect. This means you’re looking at paying the full repair bill out of pocket – money that could have been saved with proper RV leveling techniques using simple leveling blocks.
Food Safety Risks from Temperature Fluctuations
Unlevel RV refrigerator problems create dangerous temperature swings that put your family’s health at risk. When the absorption system can’t maintain consistent cooling, internal temperatures fluctuate unpredictably. Your refrigerator might seem cold enough during the day but warm up significantly at night, creating perfect conditions for bacterial growth.
Perishable foods like meat, dairy, and leftovers become breeding grounds for harmful bacteria when temperatures rise above 40°F for extended periods. You might not even notice the temperature changes until food spoilage becomes obvious, but by then, dangerous pathogens could already be present.
The refrigerator’s freezer section also suffers from leveling issues, leading to partial thawing and refreezing cycles that destroy food quality and safety. Ice cream becomes soft, frozen vegetables develop ice crystals, and meat can develop freezer burn or worse – bacterial contamination from temperature abuse.
Reduced Appliance Lifespan
A properly maintained absorption refrigerator should last 15-20 years with regular use. However, operating your RV refrigerator without proper leveling can cut this lifespan in half or more. The constant stress on internal components from improper ammonia circulation wears down seals, corrodes metal parts, and degrades the overall system efficiency.
Each time you run your unlevel RV refrigerator, you’re essentially shortening its remaining useful life. The heating element works harder to compensate for poor circulation, the thermostat cycles more frequently due to inconsistent temperatures, and the entire cooling system operates under suboptimal conditions.
Smart RV owners invest in quality leveling equipment and make motorhome refrigerator leveling requirements a priority during setup. This simple preventive measure protects a major appliance investment and ensures reliable food storage throughout your travels. Regular attention to RV absorption fridge maintenance, starting with proper leveling, pays dividends in extended appliance life and trouble-free operation.
Proper RV Leveling Techniques for Refrigerator Efficiency
Using bubble levels for accurate positioning
Traditional bubble levels remain the gold standard for RV refrigerator leveling. Place a quality bubble level on a flat surface inside your refrigerator, preferably on a shelf that’s solidly mounted. The bubble should sit perfectly centered between the marked lines for optimal absorption refrigerator efficiency.
Many RVers make the mistake of checking level only from side to side, but front-to-back positioning matters just as much for proper coolant circulation. Check both directions and make adjustments accordingly. Digital bubble levels offer enhanced precision, displaying exact degree measurements that help you achieve the manufacturer’s recommended tolerances.
Some refrigerator models come with built-in leveling indicators, but these can become inaccurate over time. Cross-reference with your own bubble level for the most reliable readings. Keep your level in an easily accessible spot since you’ll want to check it every time you set up camp.
Adjusting stabilizer jacks and wheel chocks
Stabilizer jacks serve as your primary leveling tools, but they work best when used strategically. Start by positioning wheel chocks on the uphill wheels to prevent rolling, then extend jacks on the low side first. This prevents the RV from shifting unexpectedly during the leveling process.
Manual jacks require patience and frequent checking with your bubble level. Make small adjustments rather than cranking them up quickly – absorption refrigerators are sensitive, and even minor overcorrections can affect cooling performance. Electric jacks make the process faster but still require the same methodical approach.
Don’t rely solely on stabilizer jacks for major leveling corrections. They’re designed for fine-tuning, not lifting significant weight. For seriously unlevel sites, use leveling blocks under your wheels first, then use jacks for final adjustments.
Electronic leveling system benefits
Electronic leveling systems take the guesswork out of RV refrigerator leveling. These systems use multiple sensors to detect your RV’s position and automatically extend jacks to achieve perfect level positioning. Most systems complete the process in under two minutes, making setup much faster than manual methods.
The precision of electronic systems often exceeds what you can achieve manually. They maintain consistent accuracy and eliminate human error from the equation. Many systems also include safety features that prevent over-extension and monitor weight distribution.
Higher-end electronic leveling systems integrate with your RV’s monitoring panel, providing real-time feedback about your refrigerator’s operating conditions. Some even alert you if the RV becomes unlevel during your stay due to settling or ground conditions changing.
Quick visual reference methods
Smart RVers develop visual shortcuts for common camping situations. Take photos of your bubble level when properly positioned – these serve as quick references for future setups. Many experienced campers also mark their preferred jack extension points with colored tape for faster deployment.
Create a simple leveling checklist that includes your specific RV’s requirements. Note which corners typically need the most adjustment based on your RV’s weight distribution. This speeds up the entire process and reduces the chance of missing critical steps.
Some RVers install permanent bubble levels in visible locations throughout their coach. While these won’t be as precise as a quality handheld level, they provide constant monitoring capability and early warning if conditions change during your stay.
Maintaining Optimal Refrigerator Performance Through Leveling
Daily Level Checks During Extended Stays
When you’re parked for more than a day or two, checking your RV’s level becomes a daily routine that directly impacts your absorption refrigerator’s performance. Ground conditions change constantly – soil settles, temperatures fluctuate, and your RV naturally shifts as you use it throughout the day. These micro-movements can throw off your carefully achieved level, causing your RV absorption fridge maintenance to suffer.
Start each morning with a quick bubble level check on both axes. Place your level on the refrigerator floor or use your RV’s built-in leveling system if available. Even a slight deviation from level can reduce cooling efficiency by up to 50% in absorption units. If you notice the bubble has moved, readjust your RV leveling blocks refrigerator setup immediately.
Pay special attention after heavy rain or extreme temperature swings. Wet ground causes settling, while temperature changes affect your RV’s structure and the ground beneath it. Smart RVers keep a digital level app on their phone for quick spot checks throughout extended stays.
Seasonal Calibration for Temperature Changes
Your absorption refrigerator leveling needs change with the seasons, and understanding this relationship prevents costly repairs and food spoilage. Summer heat affects both your RV’s structure and the ground you’re parked on, while winter conditions create entirely different challenges.
During hot summer months, asphalt and concrete expand, potentially changing your RV’s level throughout the day. Metal components in your RV also expand, subtly altering the refrigerator’s position. Check your level during the coolest part of the day, typically early morning, for the most accurate reading.
Winter brings ground frost and settling issues that can gradually shift your motorhome refrigerator leveling requirements. Frozen ground may seem stable initially but often shifts as it thaws. Additionally, propane burns less efficiently in cold weather, making proper leveling even more critical for absorption refrigerators.
Spring and fall present unique challenges with frequent temperature swings causing daily expansion and contraction cycles. During these seasons, consider checking your level twice daily – morning and evening – to catch any significant changes before they affect your refrigerator’s performance.
Monitoring Cooling Efficiency Indicators
Recognizing the early warning signs of leveling issues helps prevent complete cooling failure and expensive repairs. Your absorption refrigerator provides several indicators that reveal when RV refrigerator leveling problems are developing, often before the unit stops cooling entirely.
Temperature consistency serves as your primary indicator. A properly leveled absorption refrigerator maintains steady temperatures with minimal fluctuation. When you notice frequent temperature swings or certain areas of the refrigerator running warmer than others, check your level immediately.
| Warning Sign | Likely Cause | Action Needed |
| Uneven cooling zones | Poor ammonia circulation | Re-level and monitor for 2 hours |
| Excessive frost buildup | Refrigerant flow issues | Check level on all axes |
| Loud gurgling sounds | Air bubbles in system | Immediate re-leveling required |
| Poor freezer performance | Inadequate refrigerant flow | Verify side-to-side level accuracy |
Ice formation patterns tell you a lot about your refrigerator’s level status. Proper absorption refrigerator efficiency leveling produces even frost distribution in the freezer. When ice forms primarily on one side or creates unusual patterns, your RV likely needs releveling.
Energy consumption changes also signal leveling problems. An unlevel absorption refrigerator works harder to maintain temperature, consuming more propane or electricity. If you notice increased fuel usage without other obvious causes, verify your RV’s level before assuming mechanical problems exist.
Getting your RV properly leveled isn’t just about comfort—it’s essential for keeping your absorption refrigerator running smoothly and protecting your investment. When your RV sits unlevel, the cooling process gets disrupted, leading to poor temperature control, potential damage to internal components, and even complete system failure. The ammonia-based cooling system in these refrigerators relies on gravity and precise fluid flow, making proper leveling absolutely critical for optimal performance.
Taking the time to level your RV correctly will save you money on repairs and ensure your food stays fresh during your adventures. Use bubble levels, smartphone apps, or leveling systems to check your setup at every campsite. Remember to watch for warning signs like inconsistent cooling or strange noises, and address leveling issues immediately. Your absorption refrigerator will thank you with years of reliable service, keeping your drinks cold and your meals safe no matter where the road takes you.
